PH-2301 · High-volume automotive assembly, Ontario

Autonomous differential & driveshaft delivery

A magnetic-guided AGV that delivers differentials and driveshafts to lineside. No operator, no forklift traffic.

Fig. 01 · AGV conveyor system cycling during in-house testing at PH Engineering

DrawingPH-2301 · Autonomous differential & driveshaft delivery

Sheet01 of 07

Rev1.0

Drawn byPH Engineering

LocationWoodstock, ON

The situation

Differentials and driveshafts are heavy, awkward and consumed at line rate. Moving them by forklift means traffic in a pedestrian zone and a hard dependency on a driver being available exactly when the line needs parts.

What it delivers

Completely autonomous pickup and drop-off, integrated with the line's controls. The system was designed, built and proven on our floor, then installed and commissioned on-site.

What we built

01Magnetic-guided AGV route between the prep area and lineside
02Powered-roller decks on cart and stands, so pickup and drop-off run without an operator
03Battery-powered shuttle carts with onboard I/O and charge management
04Interroll DriveControl roller drives coordinated with the vehicle's motion
05Full electrical design, AGV programming and commissioning

Record photographs

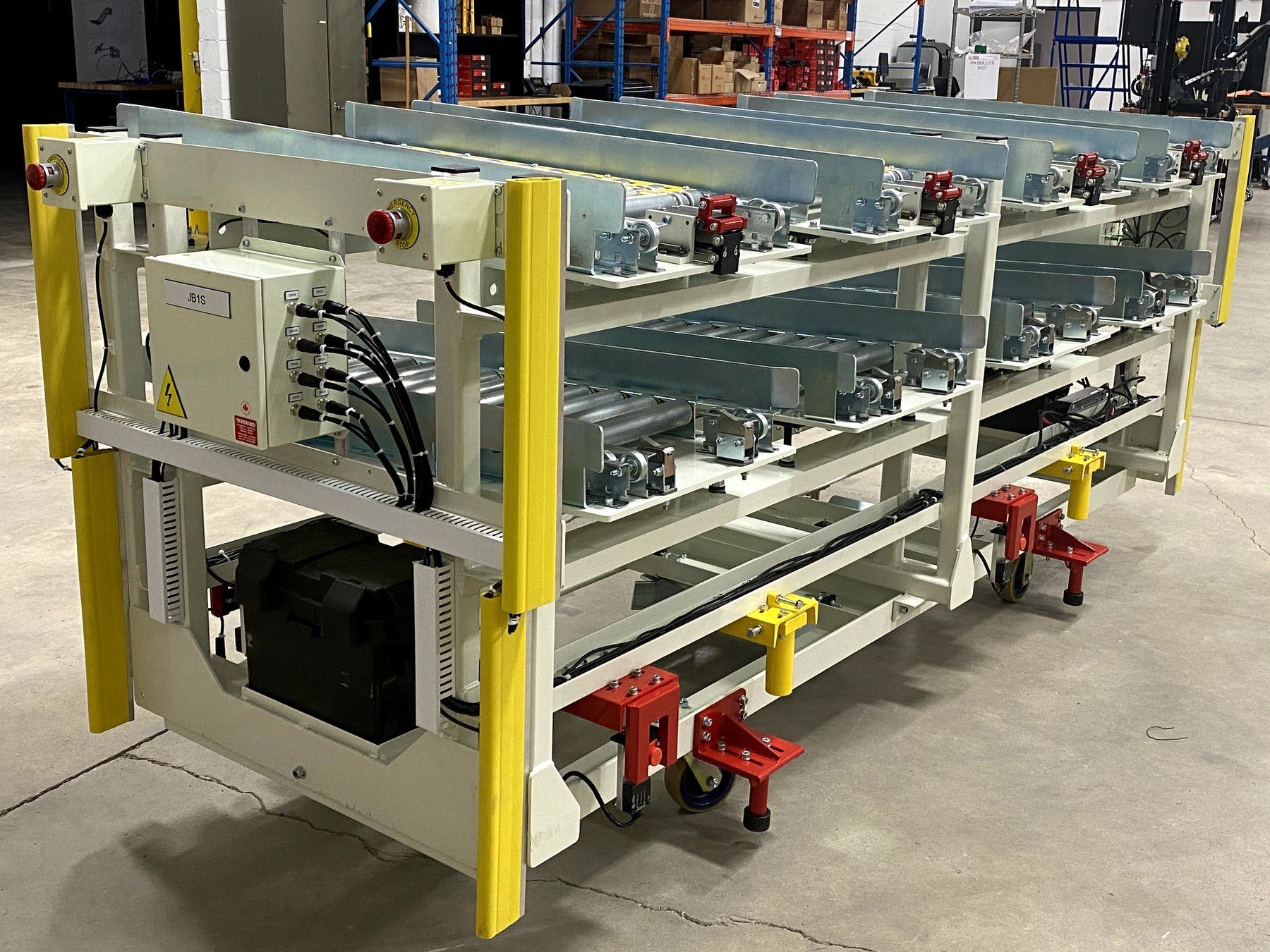

Fig. 02 — Battery-powered roller shuttle cart with safety bumpers and E-stops

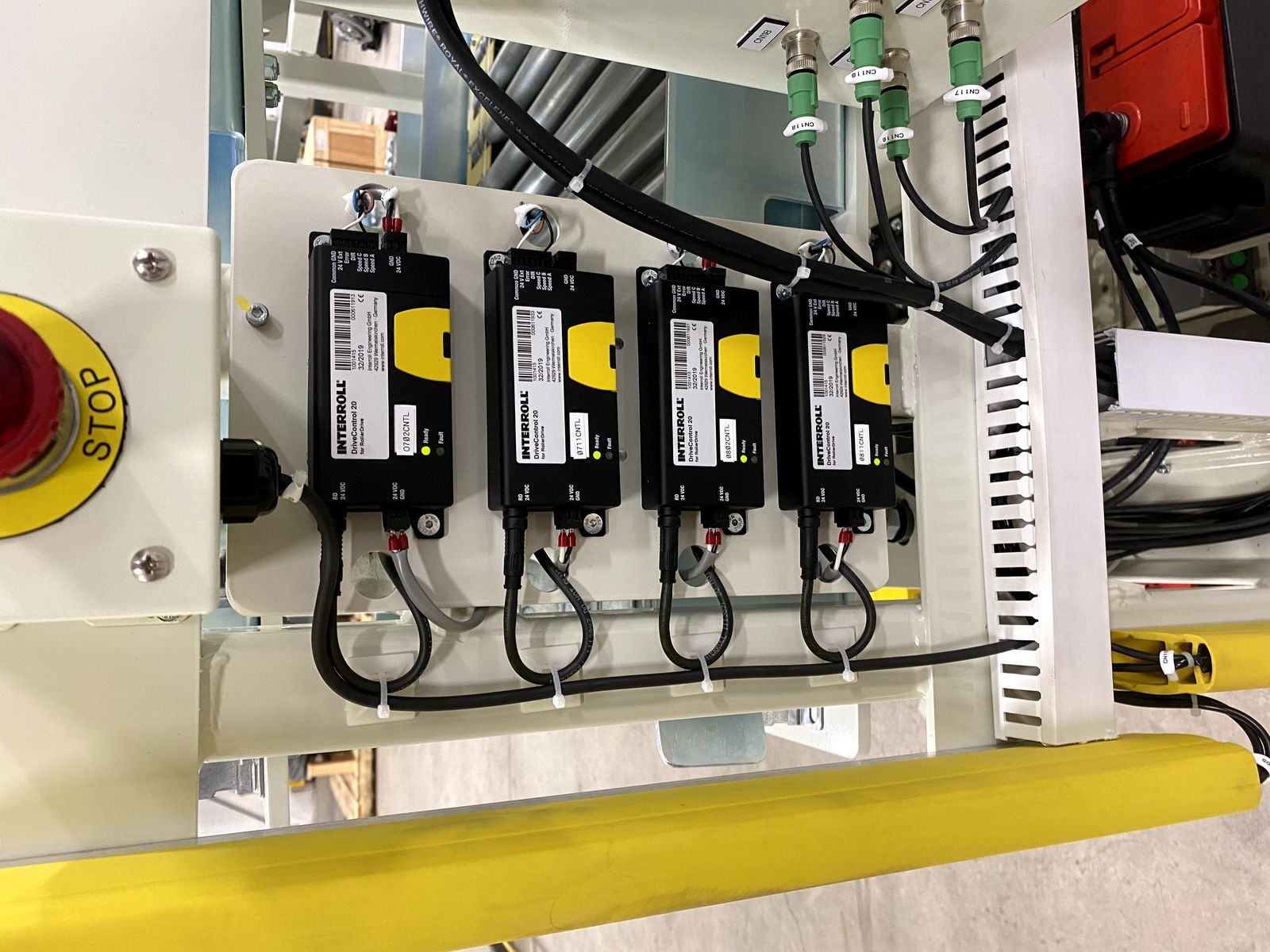

Fig. 03 — Interroll DriveControl 20 roller drives wired on the shuttle frame

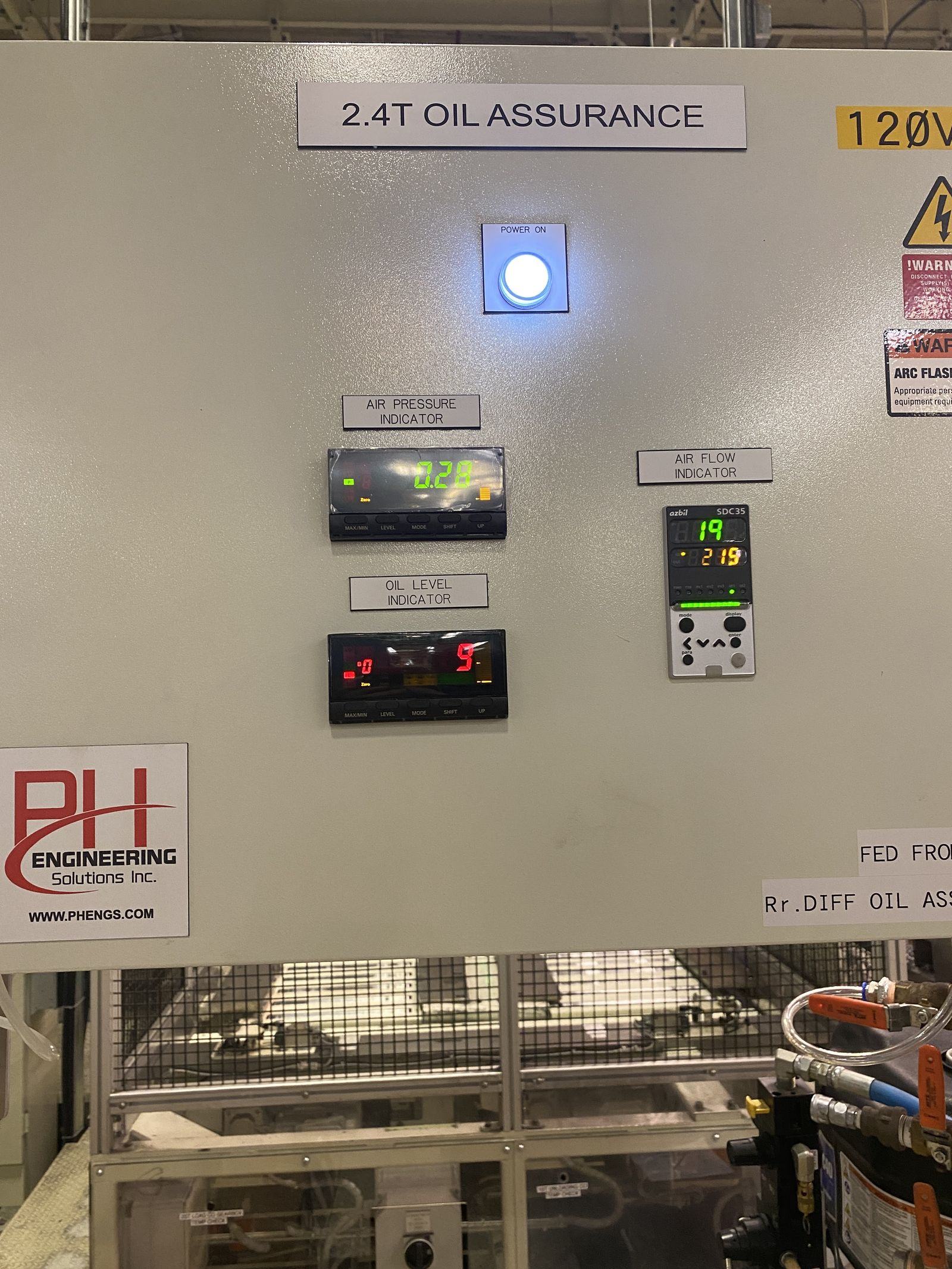

Fig. 04 — PH-built oil assurance control panel for the rear differential line

Capabilities on this job

Capability	What it covered here
Electrical & Control System Design	Panel and control system design that holds up in the environments other designs fail in.
PLC & HMI Programming	Ladder and structured text written to be read by the next engineer, and by your maintenance team at 2am.
Automated Delivery & Material Handling	Conveyance, AGVs and automated storage, integrated into the systems that have to talk to them.
