PH-2368 · Electrified-vehicle assembly, Ontario
Inverter & transmission prep tables
Powered prep tables for inverter and transmission sub-assembly, from our CAD to the commissioned station.

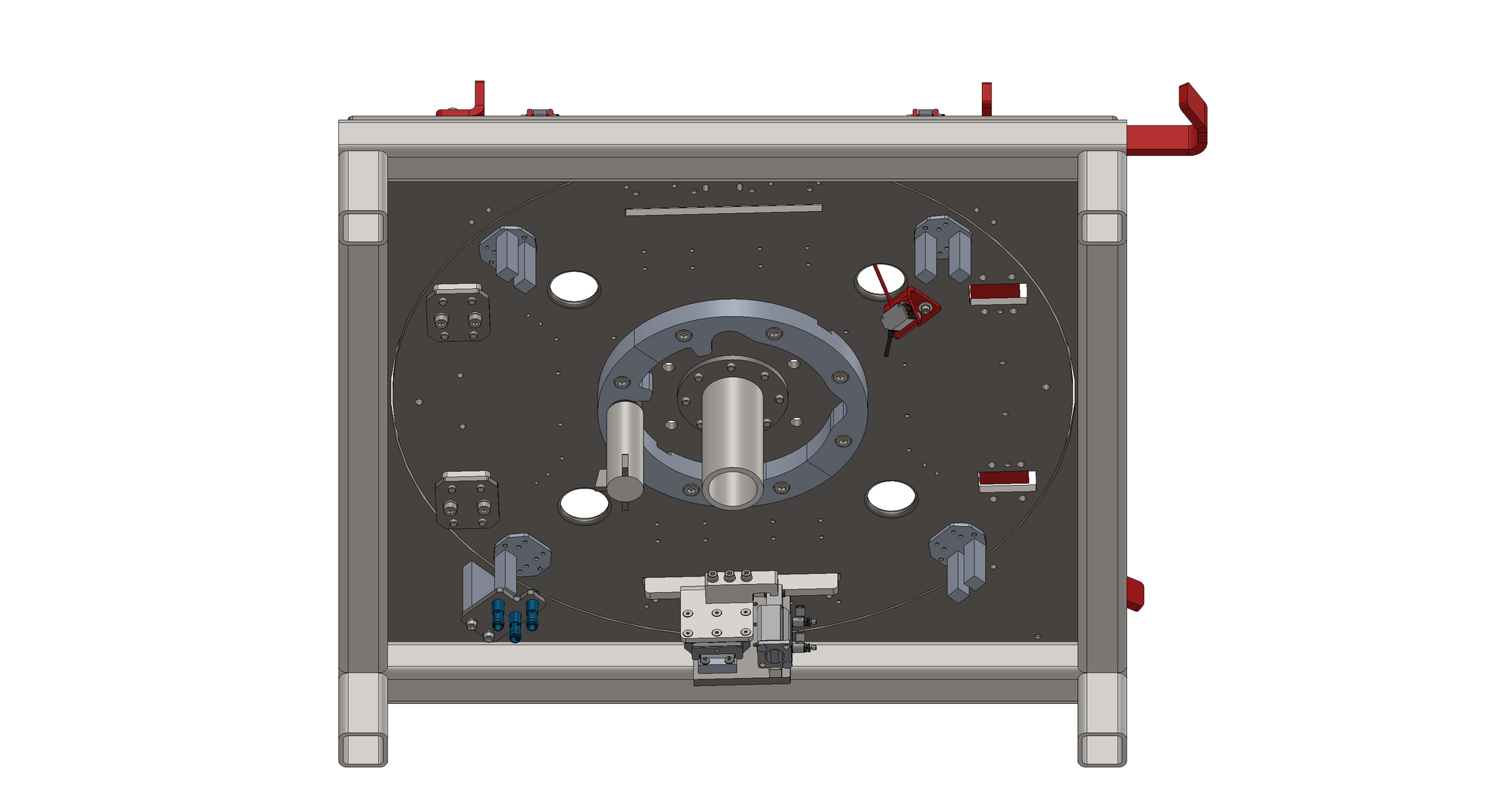

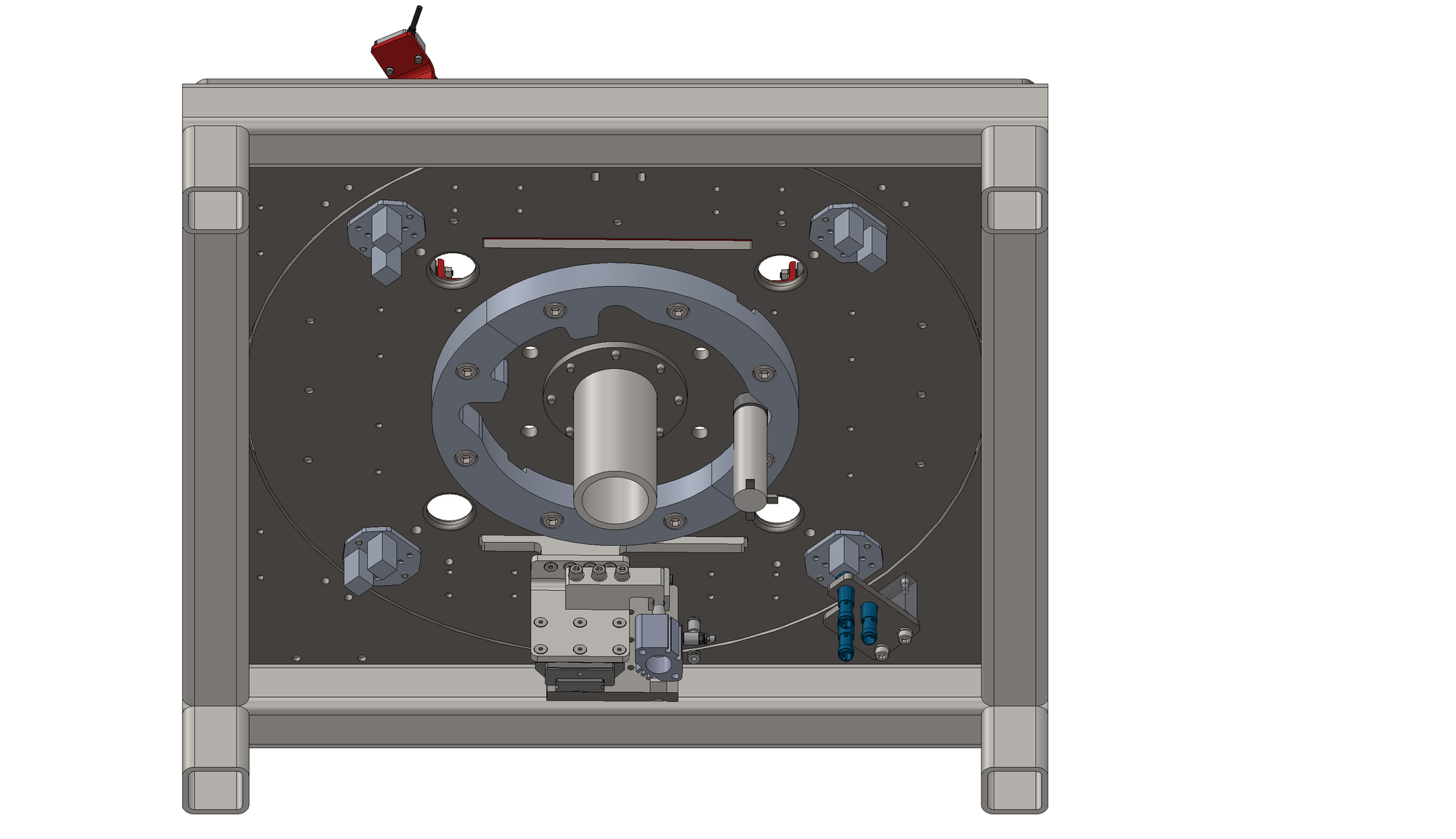

DrawingPH-2368 · Inverter & transmission prep tables
Sheet07 of 07
Rev1.0
The situation
Electrified powertrains bring new sub-assemblies onto the floor, and each one needs a prep station that presents the part, powers the tools and fits a footprint the plant didn't plan for.
What it delivers
Stations that started as PH drawing number PH-2368 and ended as commissioned equipment on the line. One contractor from CAD to production.
What we built
- 01Complete mechanical design: frames, fixtures and rotation, drawn in-house
- 02270-degree rotating load table so every joint can be tightened from one position
- 03Automatic transfer on Interroll rollers between stations
- 04Electrical design, sensing and on-machine I/O
- 05Commissioning and onsite installation, inside compact floor-space constraints

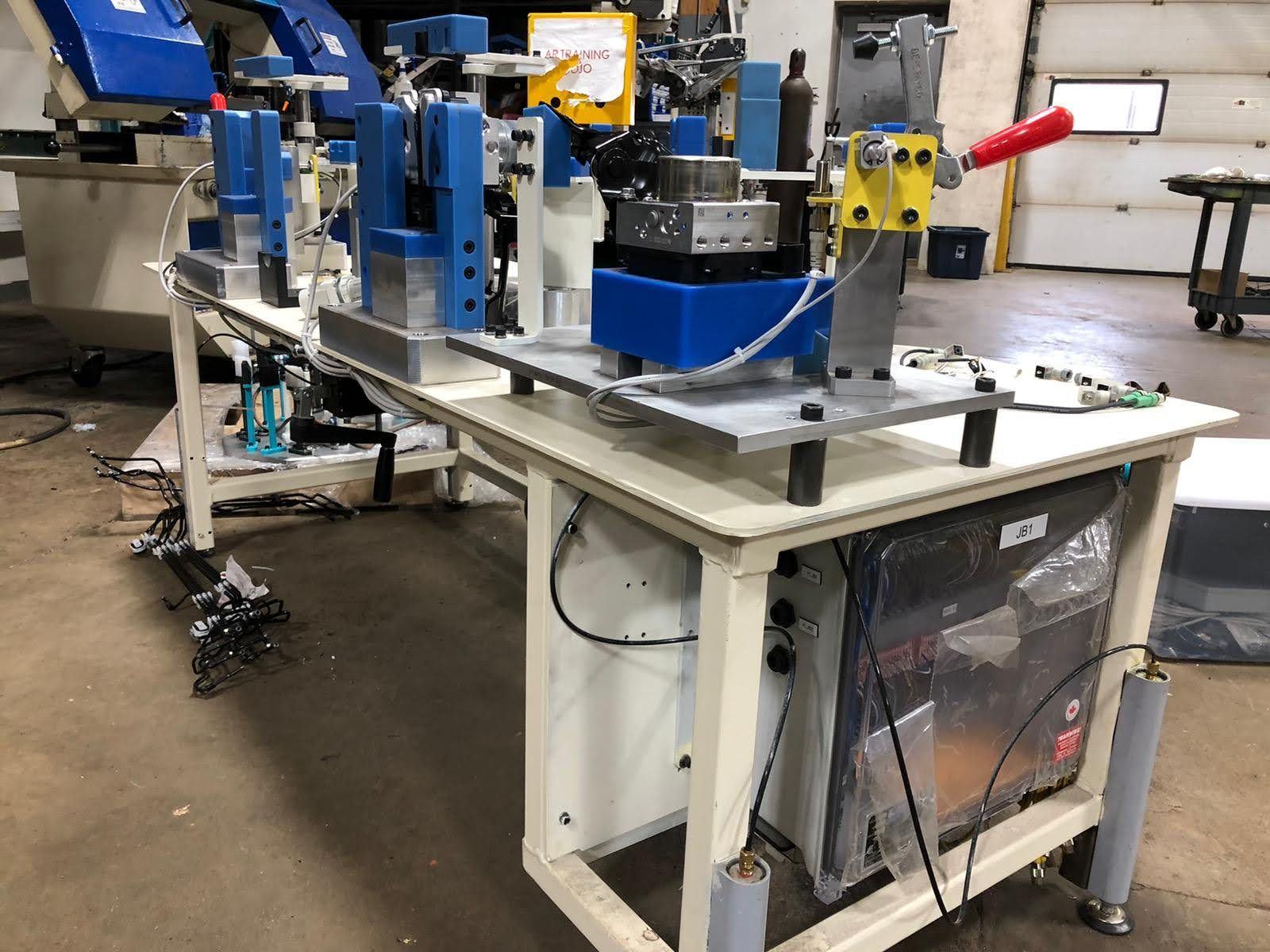

Record photographs
Capabilities on this job
| Capability | What it covered here |
|---|---|
| Electrical & Control System Design | Panel and control system design that holds up in the environments other designs fail in. |
| Automated Delivery & Material Handling | Conveyance, AGVs and automated storage, integrated into the systems that have to talk to them. |
| Mechanical Build & Fabrication | Machining, fabrication, finishing and assembly carried as a single scope, managed by us. About 40% of our business is mechanical. |
